Materials
|
Pipe / Tube |
Materials |
Grade |
|---|---|---|
|
Seamless Pipe / Tube |
SUS316L SUS316L Double Melt (VIM+VAR) Hastelloy |
EP / BA |
|
Welded Pipe / Tube |
SUS 304 SUS 316 SUS 316L Hastelloy |
EP / BA / MP / AP |
Surface Roughness
|
Designator |
Rmax (Ry) |
Internal (Ra) |
External (Ra) |
|---|---|---|---|
|
BA |
≤ 3.0 ㎛ |
≤ 10 μinch |
≤ 30 μinch |
|
EP |
≤ 0.7 ㎛ |
≤ 5 μinch |
Testing
|
He Detector Leak |
Detection sensitivity |
1 x 10-9 torr.l/sec |
|---|---|---|
|
Measruing instrument |
ALCATEL |
|
|
Pressure |
1 MPa (10 ㎏f/㎠) |
|
|
Airtightness |
0.7 MPa (7 ㎏f/㎠) |
|
|
Particle Counter |
Detection sensitivity |
0.1 ㎛ |
|
Measruing instrument |
Lightnouse |
|
Ordering Information
|
Brand |
Classifications |
Product |
Size |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
ASFLOW |
B |
Bend Fittings |
JCR |
Joint Cap Reducer |
04 |
1/4” |
20 |
1-1/4” |
48 |
3” |
|
06 |
3/8” |
24 |
1-1/2” |
64 |
4” |
|||||
|
08 |
1/2” |
32 |
2” |
80 |
5” |
|||||
|
10 |
5/8” |
40 |
2-1/2” |
96 |
6” |
|||||
|
12 |
3/4” |
* Pipe Size : __A |
||||||||
|
16 |
1” |
|||||||||

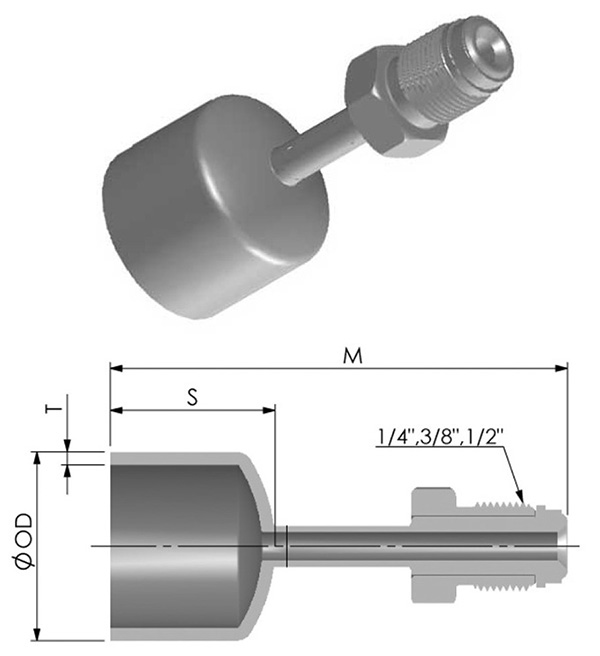

Dimension
Auto Welding – Tube Size
(unit = ㎜)
|
Size |
1/4″ |
3/8″ |
1/2″ |
5/8” |
3/4″ |
1″ |
1-1/4″ |
1-1/2″ |
2″ |
2-1/2″ |
3″ |
4″ |
5″ |
6″ |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD |
6.35 |
9.53 |
12.7 |
15.88 |
19.05 |
25.4 |
31.8 |
38.1 |
50.8 |
63.5 |
76.2 |
101.6 |
127.0 |
152.4 |
||
|
S |
12.7 |
12.7 |
12.7 |
12.7 |
19.1 |
25.4 |
38.1 |
38.1 |
38.1 |
38.1 |
38.1 |
63.5 |
– |
– |
||
|
FEMALE |
M |
1/4” |
40.7 |
40.7 |
40.7 |
40.7 |
47.6 |
54.1 |
66.8 |
66.9 |
66.9 |
67 |
68.6 |
91.5 |
– |
– |
|
3/8” |
41.2 |
41.2 |
41.2 |
41.2 |
47.5 |
53.7 |
66.6 |
66.7 |
66.8 |
66.8 |
68.5 |
92 |
– |
– |
||
|
1/2” |
41.2 |
41.2 |
41.2 |
41.2 |
47.1 |
53.8 |
66.7 |
66.9 |
66.1 |
67.2 |
67.9 |
92 |
– |
– |
||
|
MALE |
M |
1/4” |
55.9 |
55.9 |
55.9 |
55.9 |
62.8 |
59.3 |
82 |
82.1 |
82.1 |
82.2 |
83.8 |
106.7 |
– |
– |
|
3/8” |
58.2 |
58.2 |
58.2 |
58.2 |
65 |
71.2 |
84.1 |
84.2 |
84.3 |
84.3 |
86 |
109 |
– |
– |
||
|
1/2” |
58.2 |
58.2 |
58.2 |
58.2 |
64.1 |
70.8 |
83.7 |
83.9 |
83.1 |
84.2 |
84.9 |
109 |
– |
– |
||
* Please refer to “Pipe & Tube” products on this homepage for thickness(T) of straight end length.
Auto Welding – Pipe Size
(unit = ㎜)
|
Size |
8A |
10A |
15A |
20A |
25A |
32A |
40A |
50A |
65A |
80A |
100A |
125A |
150A |
200A |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD |
13.8 |
17.3 |
21.7 |
27.2 |
34.0 |
42.7 |
48.6 |
60.5 |
76.3 |
89.1 |
114.3 |
139.8 |
165.2 |
216.3 |
||
|
S |
12.7 |
19.1 |
25.4 |
25.4 |
38.1 |
38.1 |
38.1 |
38.1 |
38.1 |
50.8 |
63.5 |
76.2 |
88.9 |
101.6 |
||
| FEMALE |
M |
1/4” |
40.7 |
47.1 |
54 |
54.1 |
66.8 |
66.9 |
67 |
67 |
67.5 |
80.2 |
91.5 |
104.2 |
116.9 |
129.6 |
|
3/8” |
41.2 |
47.6 |
53.6 |
53.8 |
66.6 |
66.7 |
66.7 |
66.8 |
67.3 |
80.1 |
92 |
104.7 |
117.4 |
130.1 |
||
|
1/2” |
41.2 |
47.6 |
54.3 |
53.9 |
66.8 |
66.9 |
67 |
67.1 |
67.7 |
80.4 |
92 |
104.7 |
117.4 |
130.1 |
||
| MALE |
M |
1/4” |
55.9 |
62.3 |
69.2 |
69.3 |
82 |
82.1 |
82.1 |
82.2 |
82.7 |
95.4 |
106.7 |
119.4 |
132.1 |
144.8 |
|
3/8” |
58.2 |
64.6 |
71.1 |
71.3 |
84.1 |
84.2 |
84.2 |
84.3 |
84.8 |
97.6 |
109 |
121.7 |
134.4 |
147.1 |
||
|
1/2” |
58.2 |
64.6 |
71.3 |
70.9 |
83.8 |
83.9 |
84 |
84.1 |
84.7 |
97.4 |
109 |
121.7 |
134.4 |
147.1 |
||
* Please refer to “Pipe & Tube” products on this homepage for thickness(T) of straight end length.
