High Pressure Manual Diaphragm Valve

Specification

Size

1/4”

1/2”

Cv Value

0.1

0.25

Orifice Size (㎜)

2.3

3.8

Max. Working Pressure

20.6 MPa

Max. Working Temp.

PCTFE

-10 ℃ ~ 42 ℃

PI

-10 ℃ ~ 150 ℃

External Leakage

Test Pressure ≤ 1 x 10-2  Torr

Holding Time ≥ 1 min.

≤ 1×10-9 mbar.l/sec

Particle Inspection

Pressure :30 ~ 60 psi N2 Gas

Sample Volume :  1 CFM / 0.1 ㎛ and Larger

No Count

Materials

Parts

Materials

① Body

SUS316L (Single Melt / Double Melt)

② Seat

PCTFE / PI

③ Diaphragm

ELGILOY®

④ Handle

ABS

Surface Roughness

BA

EP

Ra ≤ 10 μinch

Ry ≤ 3.0 ㎛

Ra ≤ 5 μinch

Ry ≤ 0.7 ㎛

Cut off Length : 0.8 ㎜

Cut off Length : 0.25 ㎜

Measuring Length : 4 ㎜

Measuring Length : 1.25 ㎜

Bright Annealed

Electro Polished

Ordering Information

HPMDV

Product

04

Size

MV

Connection

E

Grade

S

Material

Product

Size

Connection

Grade

Material

Seat

Material

HPMDV

04

1/4”

MV

Male

E

EP

D

SUS316L

Double Melt

NONE

PCTFE



06

3/8”

FV

Female

B

BA

S

SUS316L

Single Melt

PI

PFA



08

1/2″

LOK

Lok





PI



BW

Butt Weld



Dimension

Model

Connection

Size

A

(㎜)

B

(㎜)

C

(㎜)

D

(㎜)

E

(㎜)

F

(㎜)

G

(㎜)

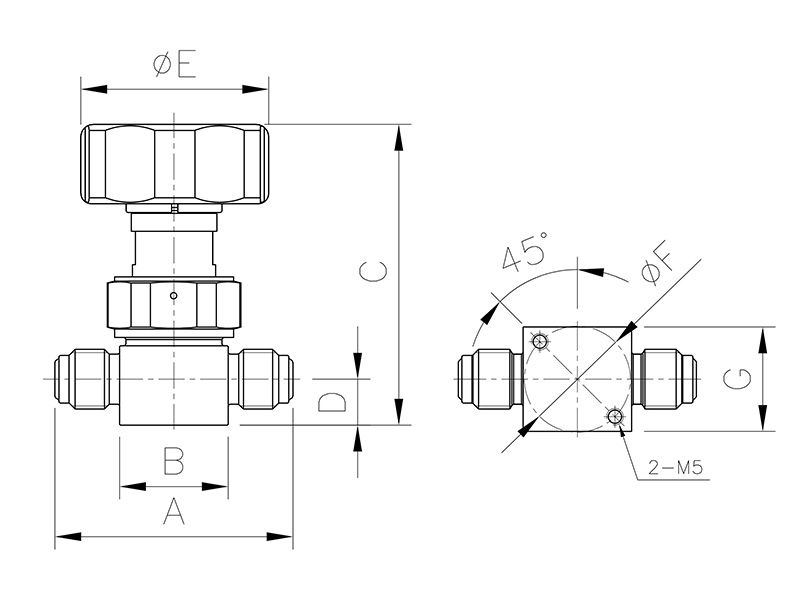

Male

1/4″

57

26

72

11

Ø45

Ø25.4

25

3/8″

77

36

100

16

Ø45

Ø28

36

1/2″

77

36

100

16

Ø45

Ø28

36

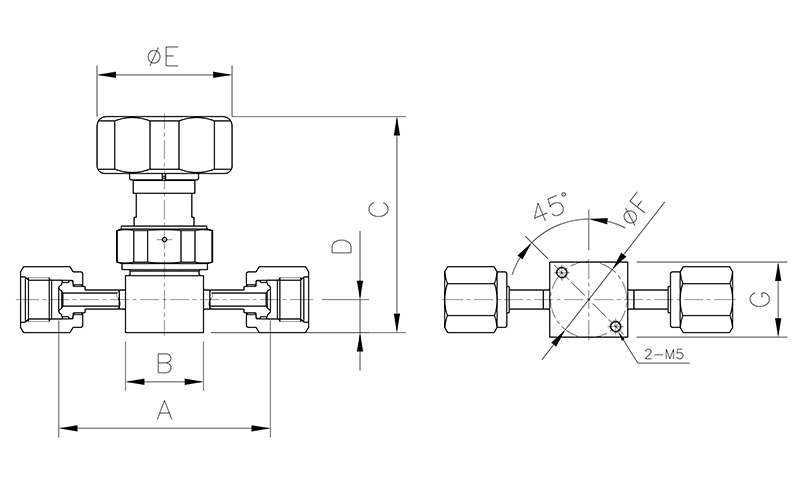

Female

1/4″

70.6

26

72

11

Ø45

Ø25.4

25

3/8″

83

36

100

16

Ø45

Ø28

36

1/2″

83

36

100

16

Ø45

Ø28

36

Lok

1/4″

55

26

72

11

Ø45

Ø25.4

25

3/8″

70

36

100

16

Ø45

Ø28

36

1/2″

70

36

100

16

Ø45

Ø28

36

Butt Weld

1/4″

54

26

72

11

Ø45

Ø25.4

25

3/8″

69

36

100

16

Ø45

Ø28

36

1/2″

69

36

100

16

Ø45

Ø28

36
