Joint Tee

Materials

Pipe / Tube

Materials

Grade

Seamless Pipe / Tube

SUS316L

SUS316L Double Melt (VIM+VAR)

Hastelloy

EP / BA

Welded Pipe / Tube

SUS 304

SUS 316

SUS 316L

Hastelloy

EP / BA / MP / AP

Surface Roughness

Designator

Rmax (Ry)

Internal (Ra)

External (Ra)

BA

≤ 3.0 ㎛

≤ 10 μinch

≤ 30 μinch

EP

≤ 0.7 ㎛

≤ 5 μinch

Testing

He Detector

Leak

Detection sensitivity

1 x 10-9 torr.l/sec

Measruing instrument

ALCATEL

Pressure

1 MPa (10 ㎏f/㎠)

Airtightness

0.7 MPa (7 ㎏f/㎠)

Particle Counter

Detection sensitivity

0.1 ㎛

Measruing instrument

Lightnouse

Ordering Information

A

ASFLOW

B

Classifications

JT

Product

04

Size

Brand

Classifications

Product

Size

ASFLOW

B

Bend Fittings

JT

Joint Tee

04

1/4”

20

1-1/4”

48

3”



06

3/8”

24

1-1/2”

64

4”



08

1/2”

32

2”

80

5”



10

5/8”

40

2-1/2”

96

6”



12

3/4”

* Pipe Size : __A



16

1”

Dimension

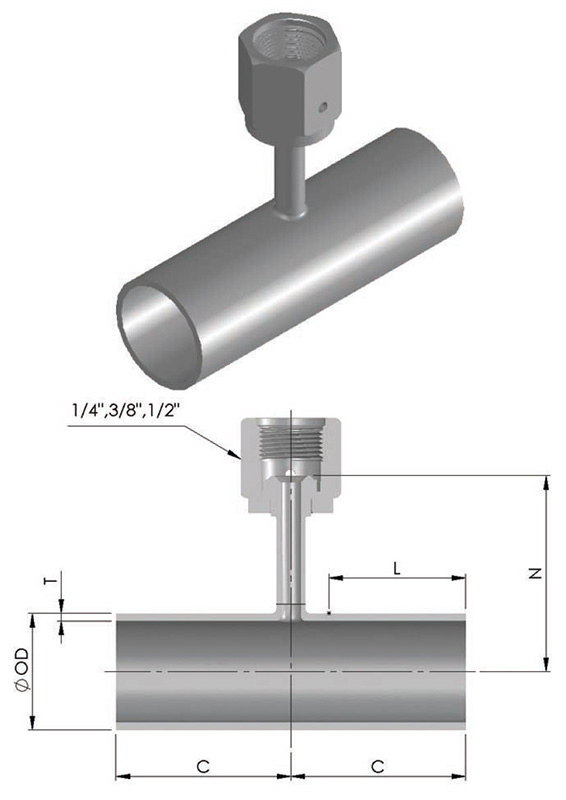

Female Type
Male Type
Auto Welding – Tube Size

(unit = ㎜)

Size

1/4″

3/8″

1/2″

5/8″

3/4″

1″

1-1/4″

1-1/2″

2″

2-1/2″

3″

4″

5″

6″

OD

6.35

9.53

12.7

15.88

19.05

25.4

31.8

38.1

50.8

63.5

76.2

101.6

127.0

152.4

C

43

45

45

52

52

55

59

68

68

72

72

72

90

110

L

29

29

29

36

36

36

36

46

46

51

51

51

56

56

FEMALE

N

1/4”

32.2

33.8

35.4

36.9

38.5

41.7

44.9

48.1

54.4

60.8

67.1

80.9

94.27

106.97

3/8”

32.7

33.8

35.4

37.4

38.5

41.7

44.9

48.1

54.4

60.8

67.1

81.4

94.77

107.47

1/2”

32.7

34.3

35.9

37.4

39

42.2

45.4

48.6

54.9

61.3

67.6

81.4

94.77

107.47

MALE

N

1/4”

47.4

49

50.6

52.1

53.7

56.9

60.1

63.3

69.6

76

82.3

96.1

109.47

122.17

3/8”

49.7

51.3

52.9

54.4

56

59.2

62.4

65.6

71.9

78.3

84.6

98.4

111.77

124.47

1/2”

49.7

51.3

52.9

54.4

56

59.2

62.4

65.6

71.9

78.3

84.6

98.4

111.77

124.47

* Please refer to “Pipe & Tube” products on this homepage for thickness(T) of straight end length.

Auto Welding – Pipe Size

(unit = ㎜)

Size

8A

10A

15A

20A

25A

32A

40A

50A

65A

80A

100A

125A

150A

200A

OD

13.8

17.3

21.7

27.2

34.0

42.7

48.6

60.5

76.3

89.1

114.3

139.8

165.2

216.3

C

45

52

52

55

59

68

68

68

72

72

72

100

110

120

L

29

36

36

36

36

46

46

46

51

51

51

56

56

56

FEMALE

N

1/4”

36.1

38.85

40.5

42.6

46

50.35

53.3

59.25

67.65

74.05

87.25

100.7

113.4

138.95

3/8”

36.6

39.35

41

43.1

46.5

50.85

53.8

59.75

68.15

74.55

87.75

101.2

113.9

139.45

1/2”

36.6

39.35

41

43.1

46.5

50.85

53.8

59.75

68.15

74.55

87.75

101.2

113.9

139.45

MALE

N

1/4”

51.3

54.05

55.7

57.8

61.2

65.6

68.5

74.5

82.9

89.3

102.45

115.9

128.6

154.15

3/8”

53.6

56.35

58

60.1

63.5

67.9

70.8

76.8

85.2

91.6

104.75

118.2

130.9

156.45

1/2”

53.6

56.35

58

60.1

63.5

67.9

70.8

76.8

85.2

91.6

104.75

118.2

130.9

156.45

* Please refer to “Pipe & Tube” products on this homepage for thickness(T) of straight end length.
