Bulk Gas Filter

Product Features

Specification

Particle Removal Size

≥ 0.0025 ㎛

Max. Rated Flow

20,000 LPM

Materials

Housing

316L Stainless Steel

Media

He Leak Rating

1 x 10-10 atm·cc/sec

Surface Finish Interior

≤ Ra 0.25 μinch

Operating Temperature

460 ℃ at 100 psi

Performance Data

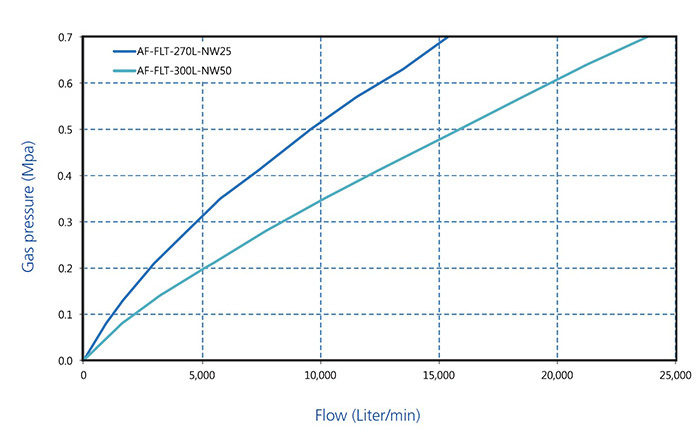

FLT-270L-NW25 / FLT-300L-NW50

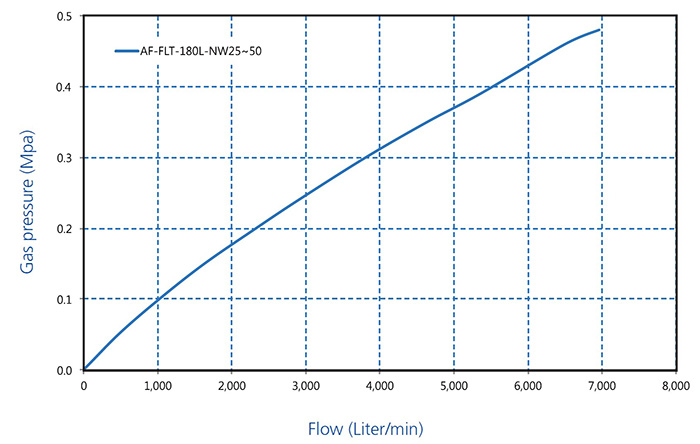

FLT-180L-NW25~50

Ordering Information

FLT

Product

180L

Length

04

Connection
Size

MV

Connection
Type

Product

Length

Connection Size

Connection Type

FLT

(Filter)

180L

04

1/4″

LOK

Lok



270L

06

3/8″

NW25



300L

08

1/2”

NW40



12

3/4”

NW50

Dimension

Ordering No.

Media

A

(Length)

B

C

(Connection)

D

(O.D)

Size

(㎜)

(㎜)

Size

(㎜)

Type

(㎜)

FLT-180L-08LOK

Φ 30

100 L x 1

180

10.4

1/2″

LOK

60.5

FLT-180L-12LOK

180

15.7

3/4″

LOK

60.5

FLT-180L-NW25

180

26.2

NW25

60.5

FLT-180L-NW40

180

41.2

NW40

60.5

FLT-180L-NW50

180

52.2

NW50

75

FLT-270L-NW25

Φ 30

120 L x 3

270

26.2

NW25

89.1

FLT-300L-NW50

300

52.2

NW50

89.1
